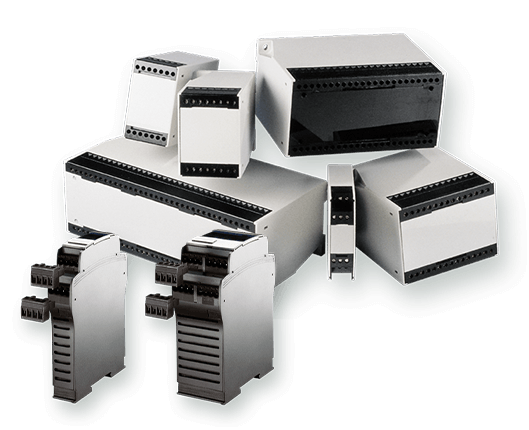

NEW LDG-A, LDG-S Enclosures
These enclosures formerly produced by ERNI are designed for fastening on DIN mounting rails (top-hat rails) and are available in different variants.
Now produced by Bernic in Denmark the compact plastic housings are available in the LDG-A and LDG-S series in different geometries and sizes for numerous areas of application.
Wall mounting of the electronics housing is also partially possible. Depending on the respective application, closed housings or those with ventilation slots can be used.
Series Features:
-
flexible assembly widths
- compact design & optimum space utilization
- mounting-friendly structure
- non-touch protection
- robust and stable
- for DIN mounting rails or wall mounting.
- fastening using latching clip

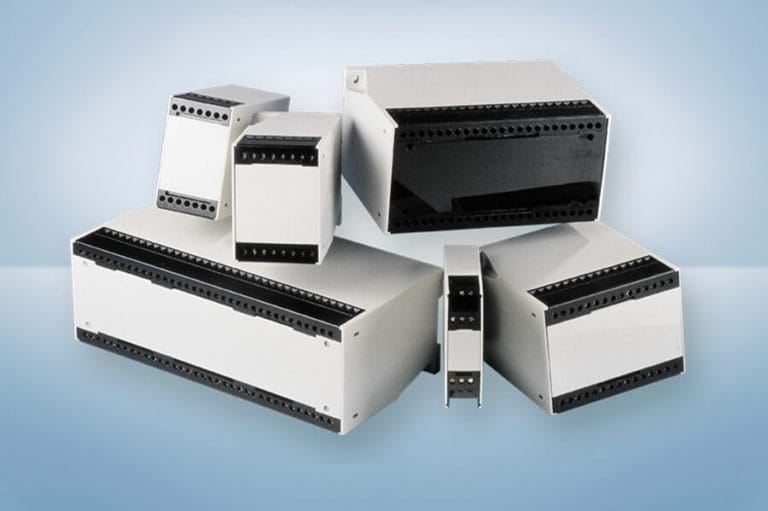

LDG-A
The LDG-A series of enclosures are fully insulated enclosures.
The screw clamp terminals are protected against accidental contact in accordance with VDE 0100 Part 570, VDE 0160 Part 100 and VBG 4. Designed for easy installation, these screw terminals can be soldered by wave, allowing the manufacturing of the PCB boards in one step.
Features
- Snap-in design for fast end assembly.
- Complete assembly of the unit outside of the housing before end assembly
- Robust self-locking vibration proof terminal block screws
- Protection against accidental human contact
- Transparent cover for LED indicators
- Suitable frame inserts for pluggable standard connectors.
- Base parts with and without ventilation slots
- Base part metallized.
- Compact and attractive design
- Wall and DIN rail mountable

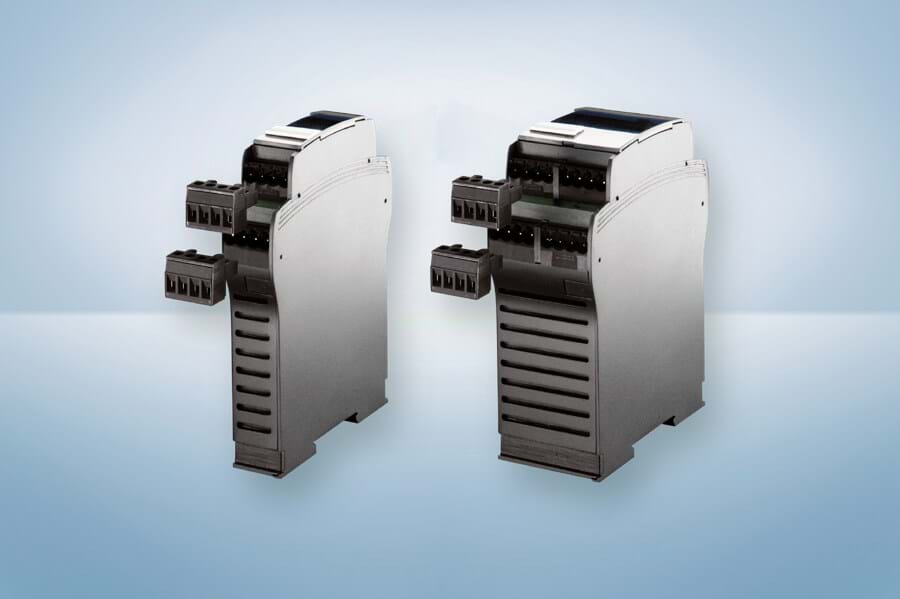

LDG-S
The LDG-S series of enclosures are fully insulated enclosures according to the specifications of the machinery and the auto-motive industries.
Designed for easy Snap-On assembly onto DIN-rails by integrated Snap-On clip.
These enclosures facilitate economical device assembly with optimal utilization of space.
For the termination of the conductors of the cable 2 enclosure versions are available:
- Pluggable terminals for easy servicing and exchange (commercial pin headers on the pcb.
- Screw terminals for a fixed termination of the conductors. For effective heat dissipation the LDG-S enclosure features a base part with integrated ventilation slots. Closed versions (without ventilation slot) are available upon request.
