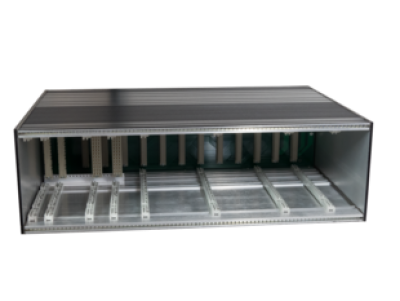

The subrack InterProtect® stands out due to its particular constructive features:

• Upper and lower cover are made from a continuously massive extruded aluminium profile. The surface is colourless passivated. The profiles have 11 screwing points on each side in order to fix the side panels.
• The profiles are equipped with notches to introduce assembly- or threaded strips. These strips are designed to fix frontpanel, rear wall, card guides and connectors resp. backplanes.
• Connector- and backplane-sections can be realized with nominal depth of 160, 180, 220 und 240 mm.
• Card guides with a nominal depth of 160 and 220 mm, optionally snap-in or screwable can be used.
• The side walls, front panel and rear wall are made of seawater resistant aluminium. They have a material thickness of 4 mm and are colourless passivated.
• Front panel and rear wall are each fixed on the 3U with 28 (42HP) resp. 52 (84HP) screws, on the 6U with 36 (42HP) resp. 60 (HP) screws.
• The use of high-quality sealing materials provides for an optimal protection against dirt, dust and the intrusion of water.
• By the use of conductive sealings an optimal shielding is achieved
