Slide locks and automatic slide locks are used especially for D-Sub interconnections with frequent reconnect cycles or for difficult mounting locations where a screw-on locking would be problematic being either difficult to reach or very time-consuming to operate.

These items are typically applied in test benches and experimental set-ups, in modular control systems or for mobile testing and diagnostic devices. As most of these kind of applications do require a high level of electromagnetic compatibility (EMC), a reliable EMI / RFI protection by continuous shielding of the interconnection system is indispensable.

Being a specialist for EMI / RFI shielding interconnection systems Inotec electronics has developed the series M1, M2, M3 and M5 which are especially designed for being operated with slide locks and automatic slide locks.

M1/M2 series

M1/M2 series with slide lock for 9- up to 50-way D-Sub or 15- up to 78-way HD connectors

• Quick an safe locking and unlocking
• Reliable protection against unintentional release under tension or vibration and high mechanical load
• 2 or 3 cable entries for a maximum of flexibility
• Type M2 has been extended by 15 mm to permit e.g. the installation of filters, PCB assemblies or offering additional space for mixed cabling
• Version with pre-cut female thread suitable as counterconnector

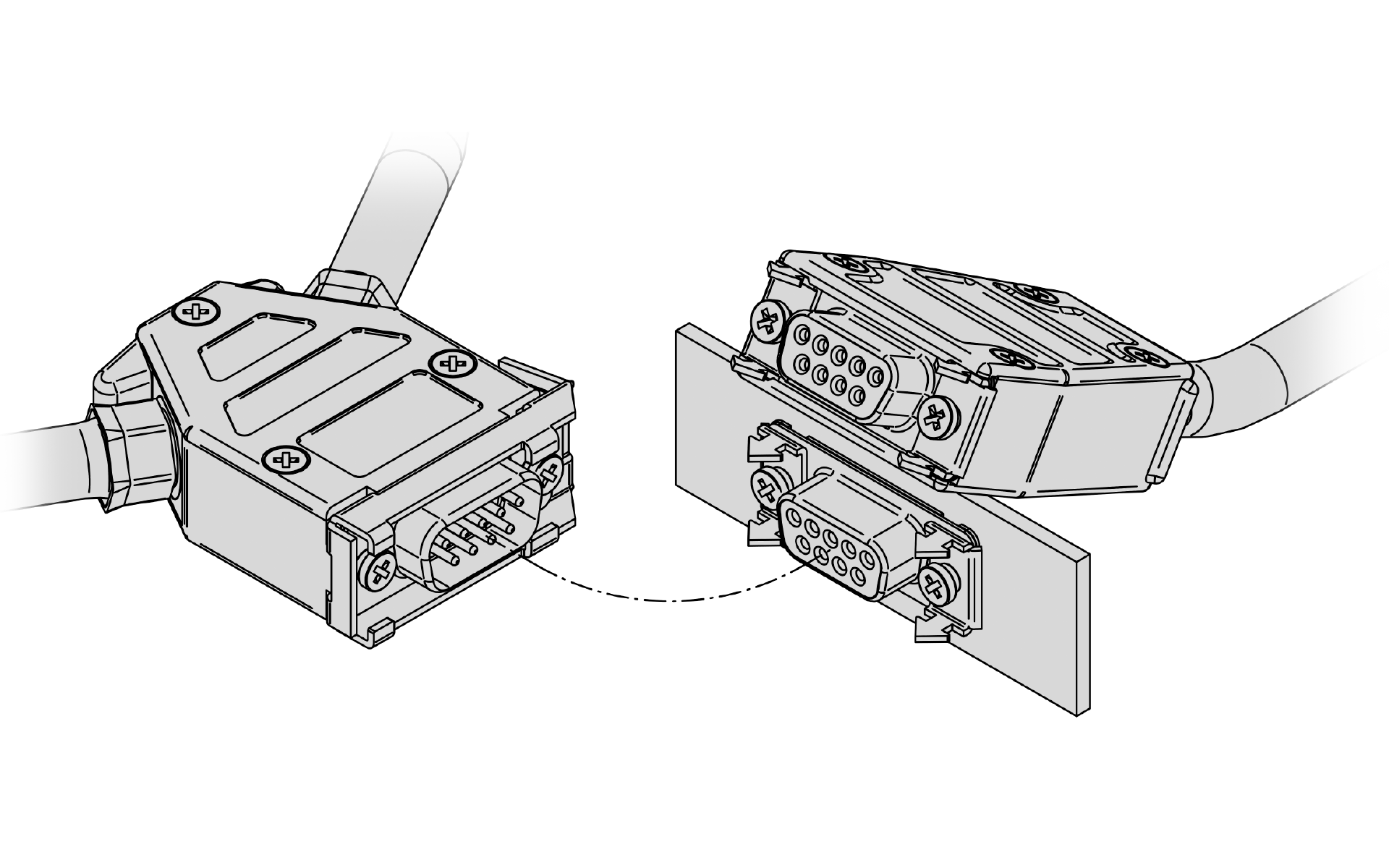

M3 series

M3 series with automatic slide lock for 9- up to 50-way D-Sub or 15- up to 78-way HD connectors

• Fast and save locking even in unfavourable installation situations
• Protection against accidental release of the connection
• When the connector is plugged in, the slide snaps automatically into the locking position
• Only for unlocking the mechanism has to be activated manually
• Safe and tool-free assembly of the locking spring
• Special blanket geometry for an optimal guidance of the lock slide
• Up to 3 cable entries for a maximum of flexibility

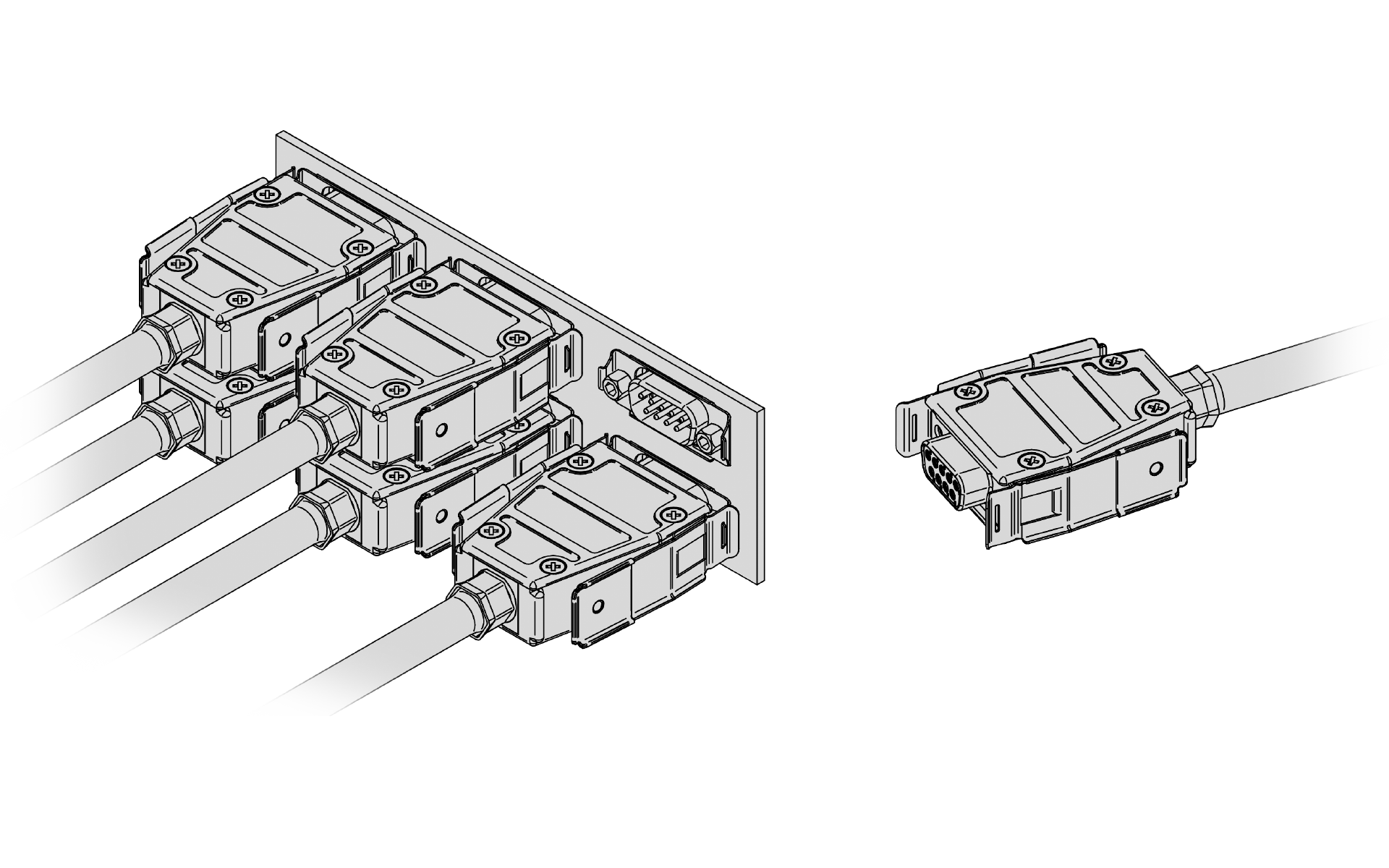

M5 series

M5 series with compact 9-way quick release lock

• Fast and save locking even at high packing densities and frequent reconnect cycles
• Locking is carried out simply by pushing on the connector without having to activate any additional mechanism
• Optimal grounding through stainless-steel snap-on hook, completely pre-assembled
• Gummed spring clips are allowing an optimal handling.
